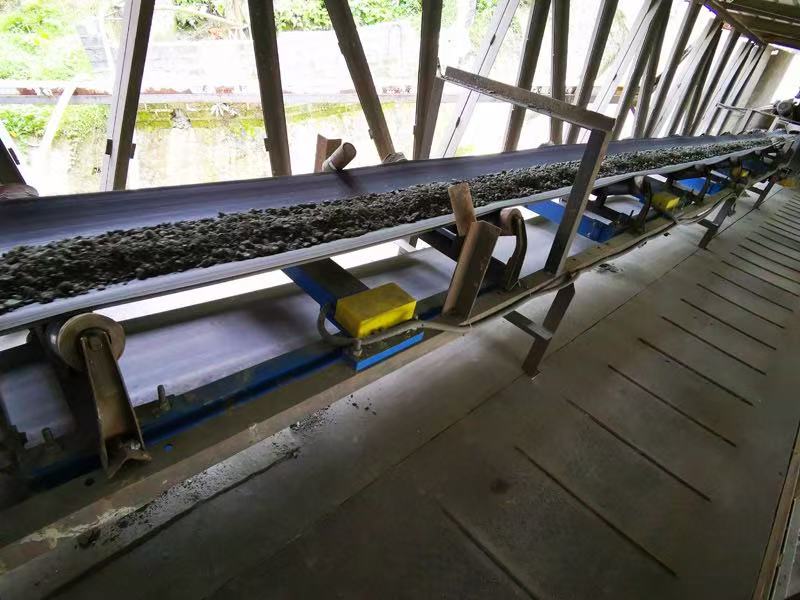

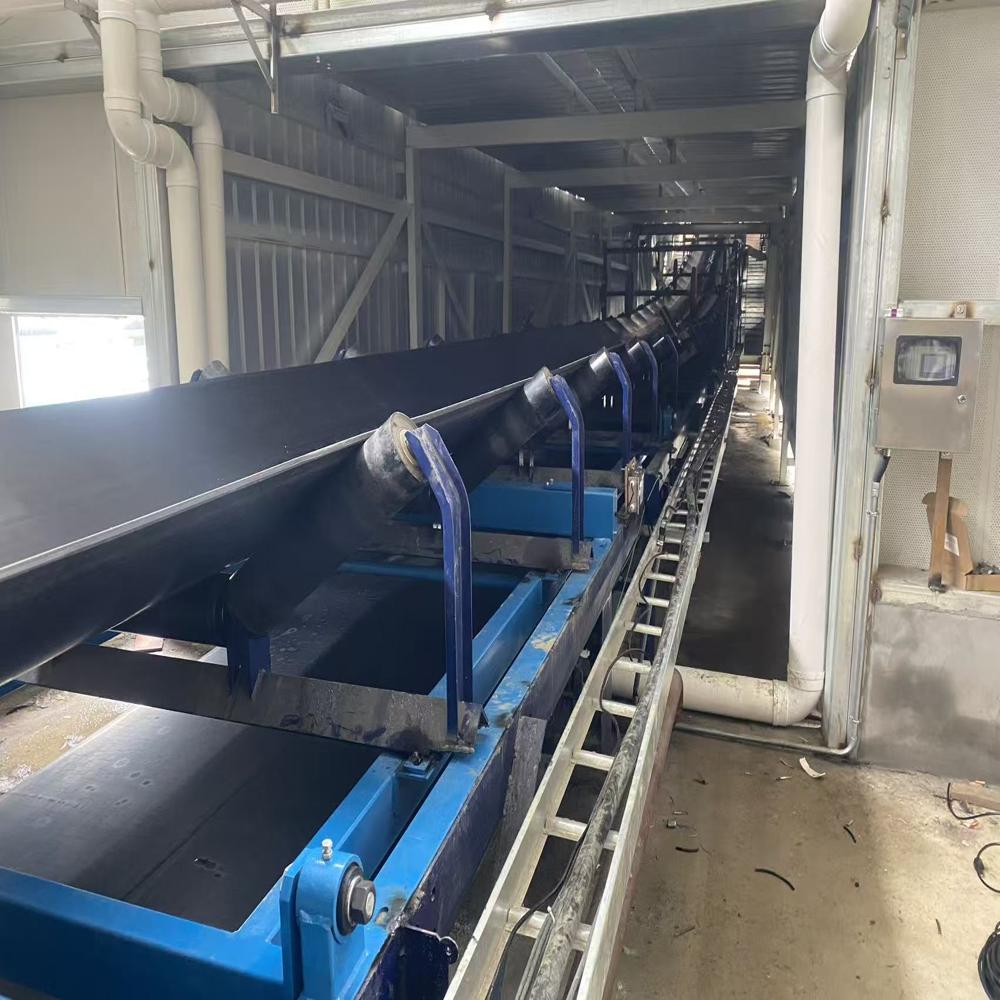

Full-floating type electronic belt scale

About Full-floating type electronic belt scale

The fully suspended high-precision electronic belt scale is widely used in the monitoring of production processes and for business trade settlement in industries such as construction materials, metallurgy, mining, power generation, chemicals, and ports. It employs a fully suspended scale frame without any support points, thereby eliminating the disturbance forces caused by the vibration of the scale frame. Four weighing sensors are used to bear the load, which prevents measurement errors due to uneven loading of the material. The weighing sensors are installed inside the belt, and their protection class is IP65. The load connection between the scale frame and the sensors uses a flexible suspension device, ensuring compact installation and ease of maintenance. The system operates stably and reliably.

Exceptional Weighing Accuracy and Capacity

Engineered for precision, this belt scale delivers measuring accuracy up to 0.5%-ensuring reliable bulk flow measurement for belts spanning 500 to 2400 mm wide. With a broad flow rate range from 0.1 to 5000 t/h, it addresses the requirements of demanding industrial environments, supporting efficient material management and process optimization.


Advanced Calibration and Automation

The scale supports digital/electronic calibration and features automatic zero tracking, minimizing manual intervention and ensuring consistent measurement accuracy. Its microprocessor-based control system allows for seamless calibration and operation, making maintenance straightforward and reducing operational downtime.


Rugged, User-Friendly Design

Designed for durability, the full-floating structure and IP65-rated enclosure provide reliable performance in harsh industrial settings. With a digital LED/LCD touch panel, modular connectivity (RS232/RS485, Ethernet), and quick onsite installation, this belt scale emphasizes operational simplicity and flexibility, supporting various application needs.
